The Tangent Digital Catheter System
Because access is everything
A biliary digital catheter that enhances every facet of CBDE.
The Tangent Digital Catheter features an unrivaled combination of a 3.28mm outer diameter with a 1.6mm working channel, making it easier to access the duct and providing dramatically improved procedural freedom once the duct is accessed.
Contact UsCatheter Length
65cm
Outer Diameter
3.28mm
Working Channel Size
1.60mm
Optical Resolution
400x400px
Field of View
120°
Image Capture
Pics + Video (via USB)
Cable Length
275cm
Irrigation Flow
Dual Flow
Slimmer 3.28 mm Outer Diameter
Accessing the duct is everything. Our slim 3.28mm outer diameter strikes the perfect balance between slim and functional.
Larger 1.6 mm Working Channel
More rapid flushing clears stones faster and improves vision.

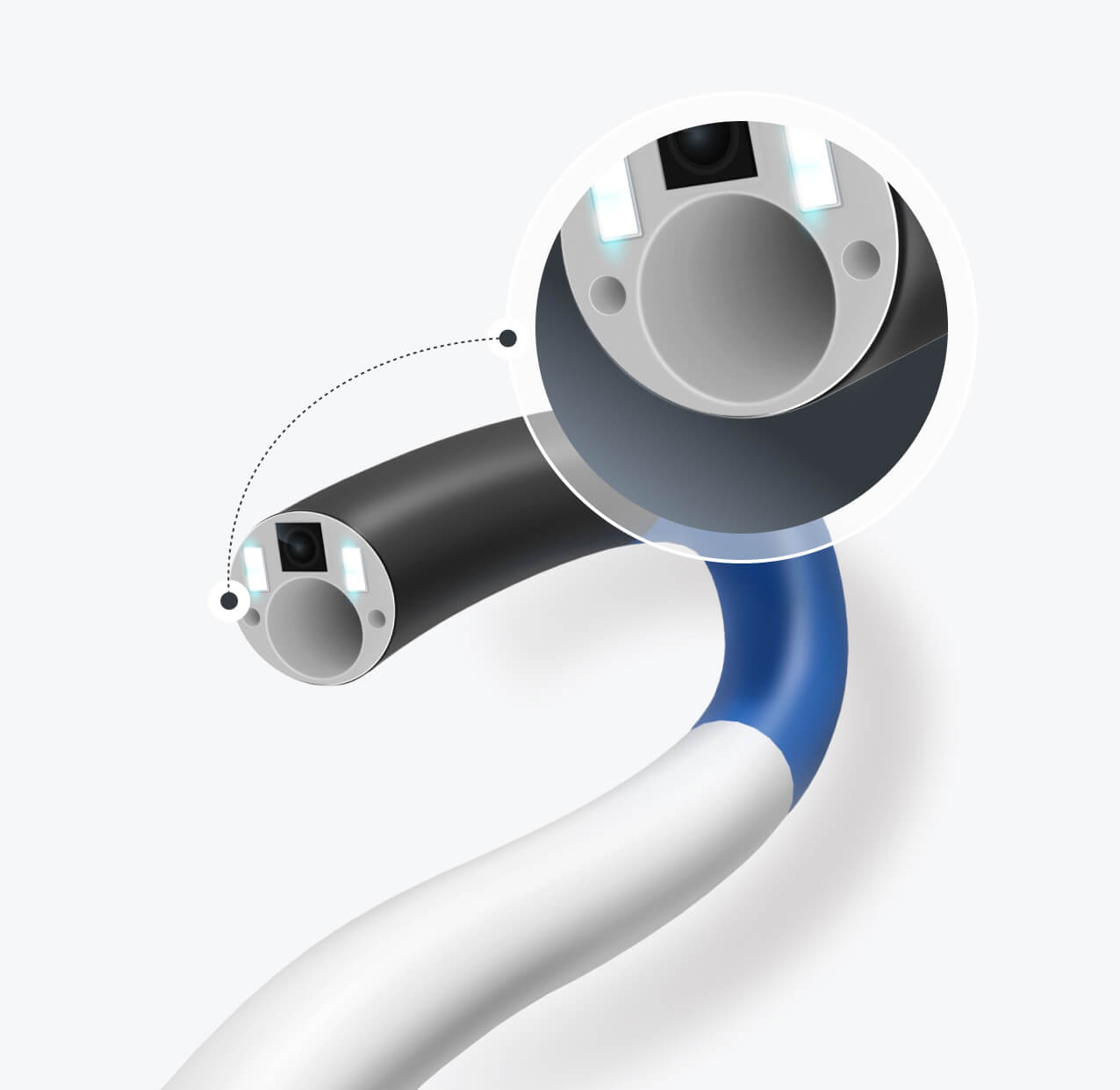

Dual
Side
Irrigation Ports
Allows for enhanced irrigation flow, even when a large instrument is inserted.
400x400 px Vision Sensor
Best in class digital vision allows you to see more detail than ever before.
Field of View
120°
Image Capture
Pics + Video
A handle second to none
Our innovative handle breaks down the barriers to CBDE and reduces the learning curve. Ambidextrous, with a straightforward control convention and designed to fit comfortably in the hand- there's simply nothing like it.
Ambidextrous Design
Equally comfortable for left - or right -handed operators.
Balanced, Intuitive Layout
Fits perfectly in the hand with the working channel access right where you want it to be.
Lever + Wheel Mechanism
Smooth, straightforward 4-axis control- the lever moves the tip up and down, the wheel left and right. It's that simple.
Tangent Digital Controller
Dimensions
8.25" x 6"
Weight
2.8 lbs
Video Cables (Included)
HDMI to HDMI
HDMI to DVI
Control
Adjustable Brightness
Video Output
2x HDMI
Inputs
USB 2.0 (Pics+ Video Capture)
Trusted by Leading Specialists
The Tangent endoscope is a game-changer for accessing challenging anatomy.
Its low-profile outer diameter significantly increases my chance of cannulating the biliary tree through even a small cystic duct. This capability, combined with incredible optics and a large working channel that accepts all standard baskets, wires, and biopsy forceps, makes the Tangent an indispensable tool for advanced endoscopic procedures. The plug-and-play interface is the final touch of convenience.
Lucas Neff, M.D.
The symmetric handle is the most exciting aspect of the endoscope.
For an interventional radiologist like me, the symmetric handle is the most exciting aspect of the endoscope, as it will allow more seamless use with either hand. That, coupled with thoughtful placement of the other components of the handle, should translate into more intuitive and tangle-free procedures. Add in an evolutionary step up in high-definition imaging, and this endoscope is tough to beat.
Jonas Redmond, M.D.
Latest News
Tangent Endoscopy Receives 510(k) Clearance for Tangent Digital Catheter System
CAMDEN, DE September 12, 2025 -- The U.S. Food and Drug Administration ("FDA") has granted Tangent Endoscopy, a leading innovator in single use flexible endoscopes, 510(k) clearance for the Tangent Digital Catheter System.
